MODEL: DR-1040x720

DR-1040x720

Features

  • Pixel Pitches in mm: P4 | P5 | P8 | P10
  • Full color and full matrix high quality LED SMD arrays
  • Anti-glare front glass for extra protection in a harsh environment
  • Supported media: text with various effects, png, moving gif
  • Software based brightness automation
  • Supports live video feed with the additional video controller
  • Verified high-end components
  • Fanless design for extra durability
  • Lifetime warranty for external frame

Optional Extras

  • Vertical version (specify need on order)
  • Brightness sensor
  • WiFi, GPRS, 4G and 5G connectivity
  • Custom software for Client specific integrations
  • Secure Socket Layer (SSL) communication
  • Extended warranty
  • Indoor version

Values are for P8 pixel pitch version

Pixel PitchP8
Resolution120x80 pixels
Brightness> 6500 nits
Viewing angleH:140 V:120
Color16 bit/color
Interface portLAN CAT 5/5e/6
Display Area (WxH)960x640 mm

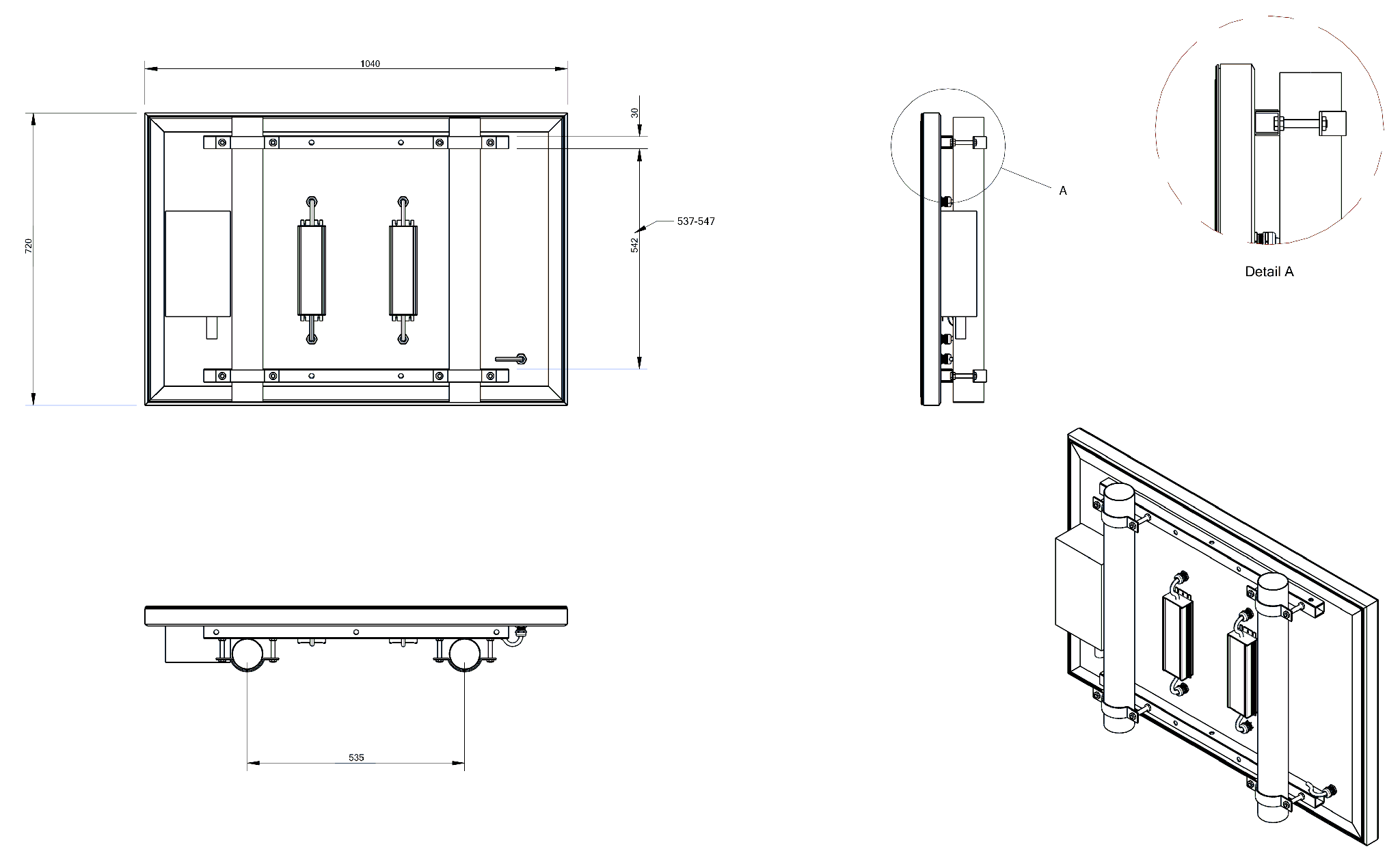

Dimensions (WxHxD)1040x720x50 mm
Min. Viewing distance8 meters
Operation24/7
Operating Temperature-35˚C … +50
Input Voltage240VAC
Power max500 W
Power avg.100 W
IP RatingIP 65
Weight21 kg
ServiceabilityFront and back
CertificationCE, RoHS
Warranty1 year

DR-2000×1040

Pixel PitchP4, P5, P8
ColorFull color
Dimensions2000×1040 mm
Brightness< 6500 nits
Weight98kg

DR-1040×1040

Pixel PitchP3, P4, P5, P8
ColorFull color
Dimensions1040×1040 mm
Brightness< 6500 nits
Weight48 kg

What if we tell you that our communication protocol is based on HTTP GET requests and is that simple:

GET http://IP:PORT/slds?id=LED1&layout=FULLSCREEN&CONTENT=
