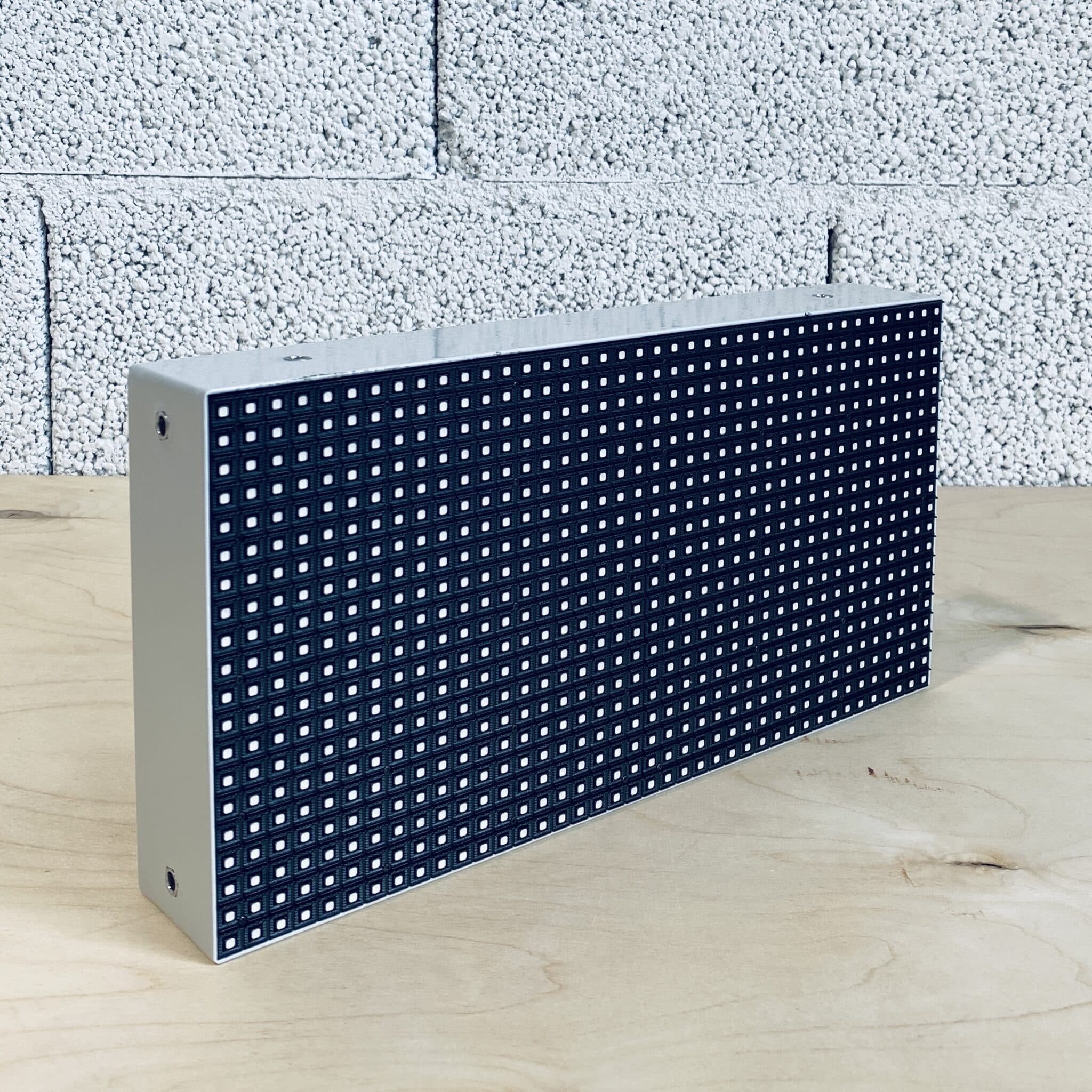

Compact DS Series

Our Compact Models have the same high-quality electronic components that our rugged models have. The only difference is the slim design and it does not have the protective front glass. Perfect for usage at parking applications or within low-cost projects.

Contact us for other sizes

Technical Specifications Summary

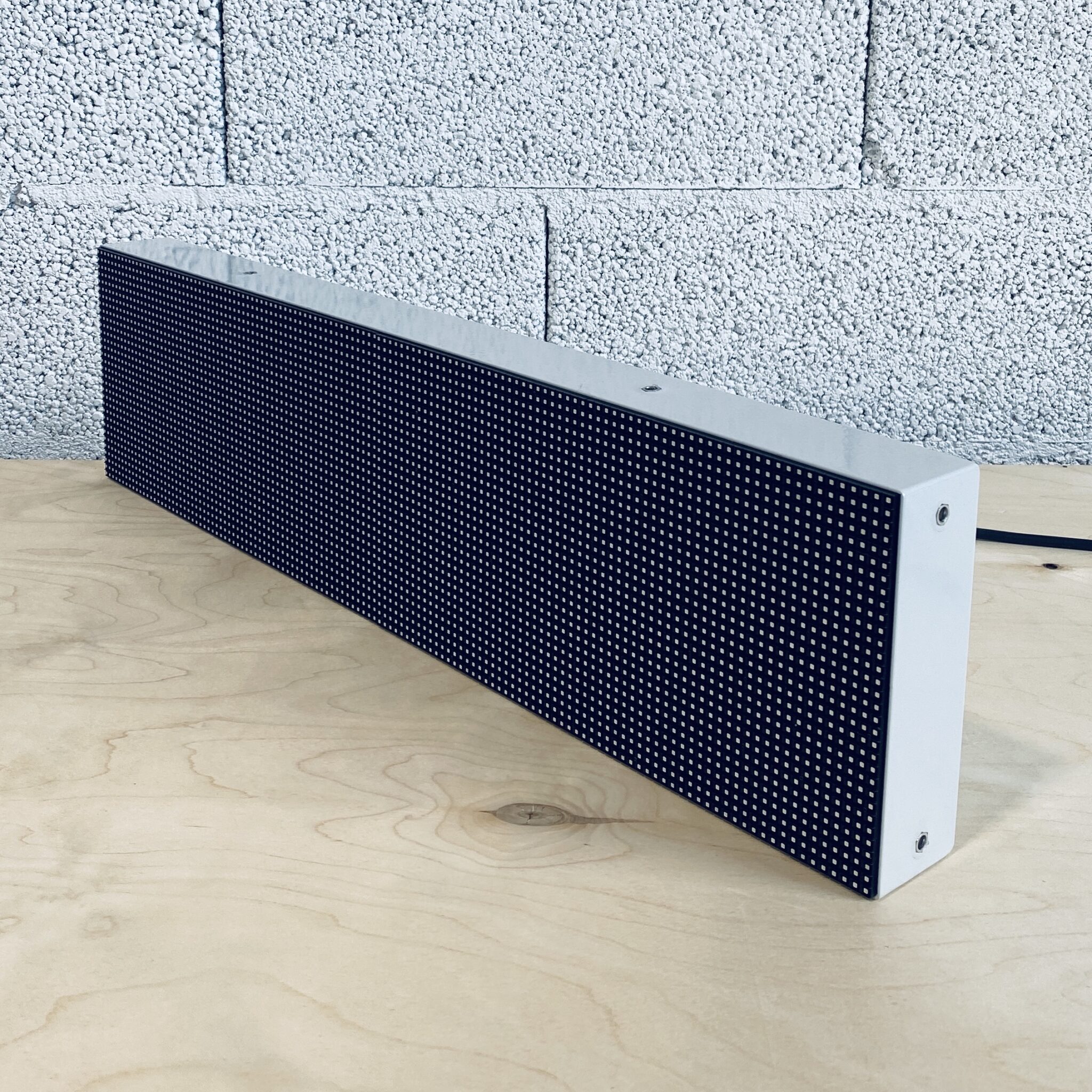

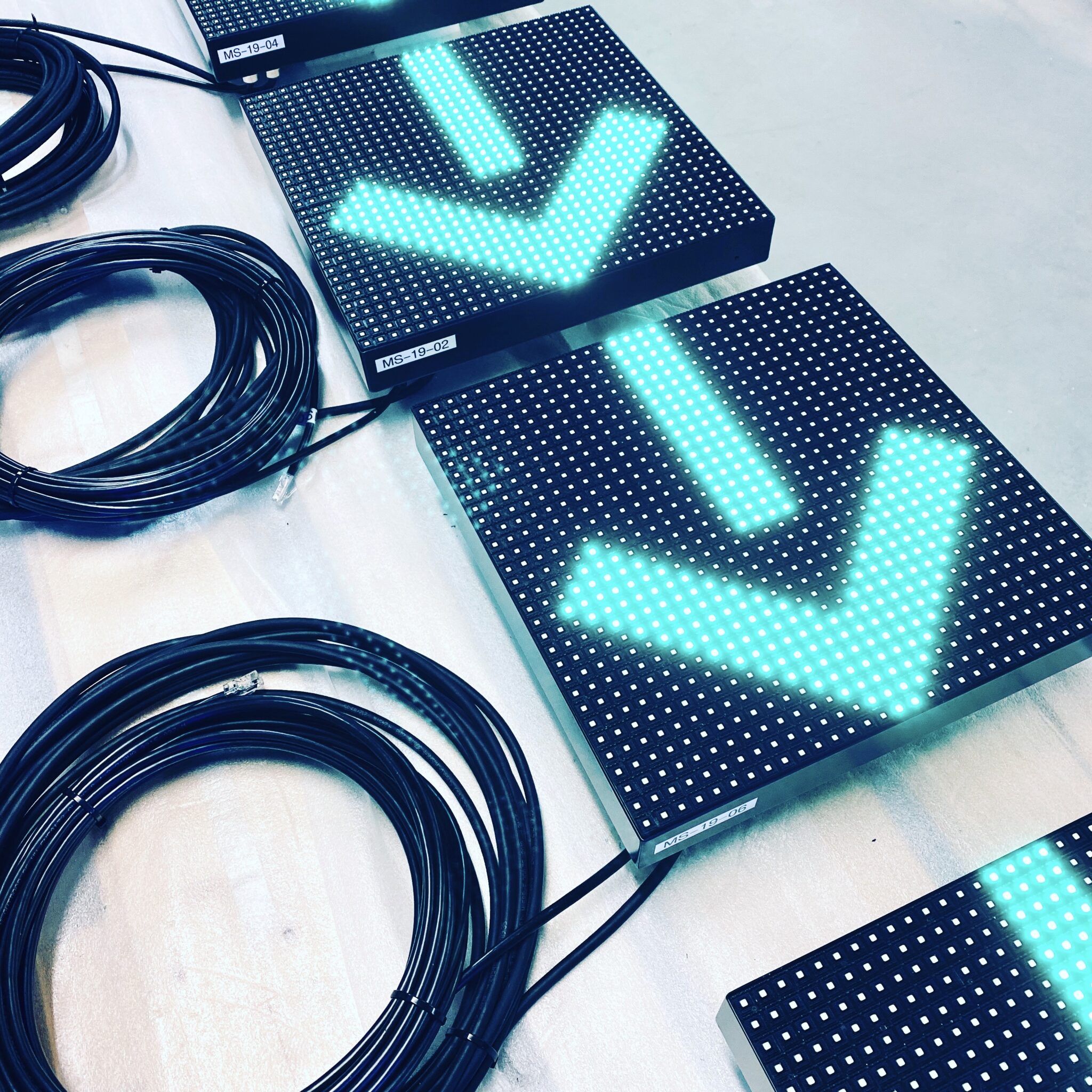

Part NumberDS-320x160-P8DS-320x320-P8DS-640x160-P8
Pixel PitchP8P8P8
Resolution40x20 pixels40x40 pixels80x20 pixels
Brightness6500 nits6500 nits6500 nits
Display TypeFull matrixFull matrixFull matrix
Led ColorRGBRGBRGB
Dimensions (WxH)320x160 mm320x320 mm640x160 mm
Weight2 kg3 kg3 kg
Interface PortLANLANLAN
Operation24/724/724/7
Operating Temperature-35˚C … +50-35˚C … +50-35˚C … +50
Input Voltage240VAC240VAC240VAC
Power Consumption Avg.15W25W25W
IP RatingIP65IP65IP65
CertificationCE, RoHSCE, RoHSCE, RoHS
ColorBlack matteBlack matteBlack matte
